Hello all,
below some captures received in my antenna located at Kattendijke, ZW part of the Netherlands.
System setup (for testing only) 2el Diamond 50Mhz yagi pointing NW with about 10degrees elevation. SDRplay RSP2pro receiver. HDSDR, VBcable. SpectrumLab.
Distance to the beacon from my location is about 400 km.
Kind regards, Kees.

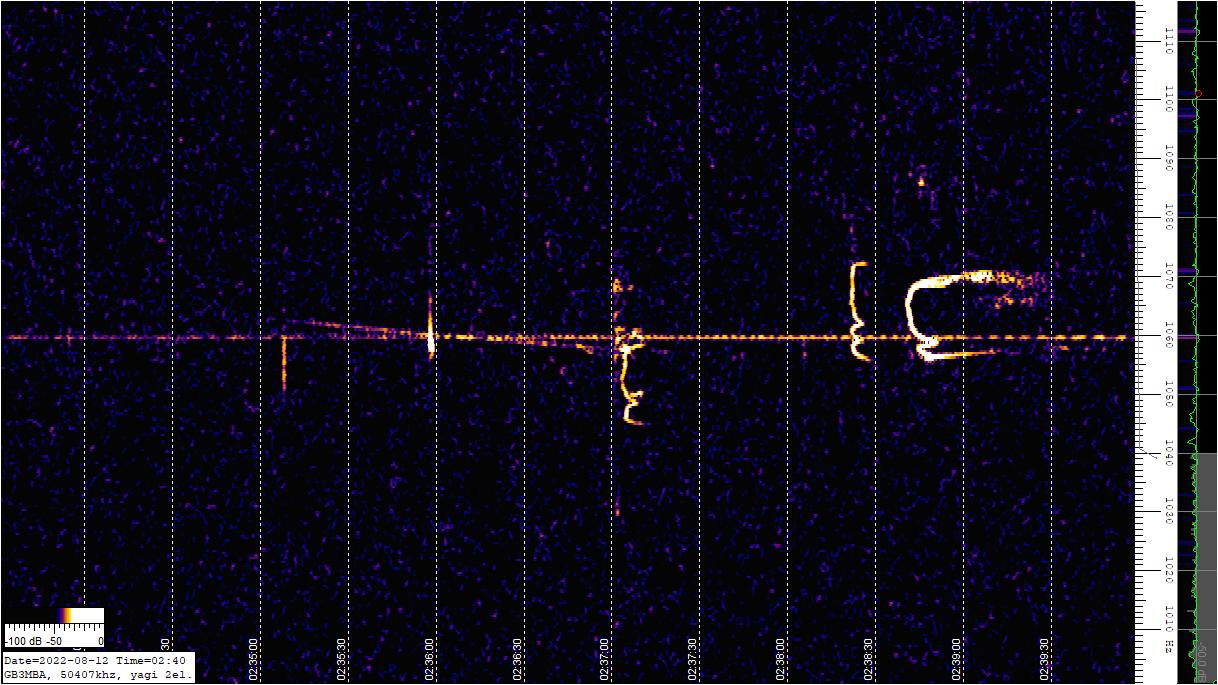

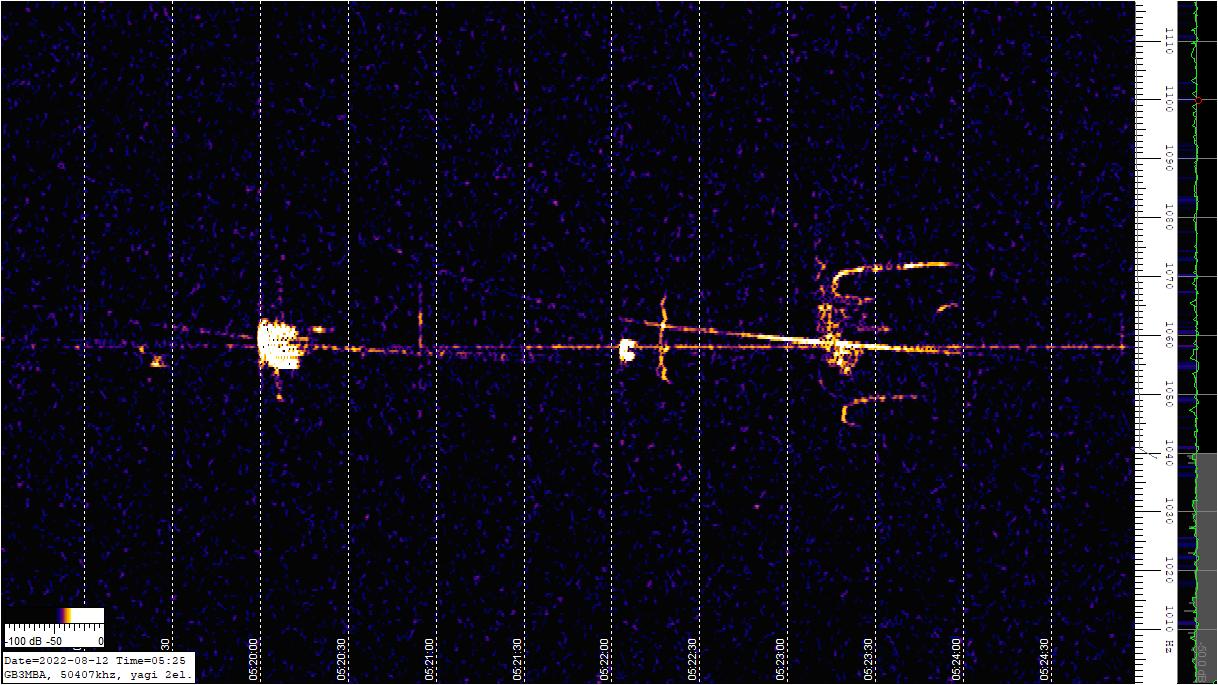

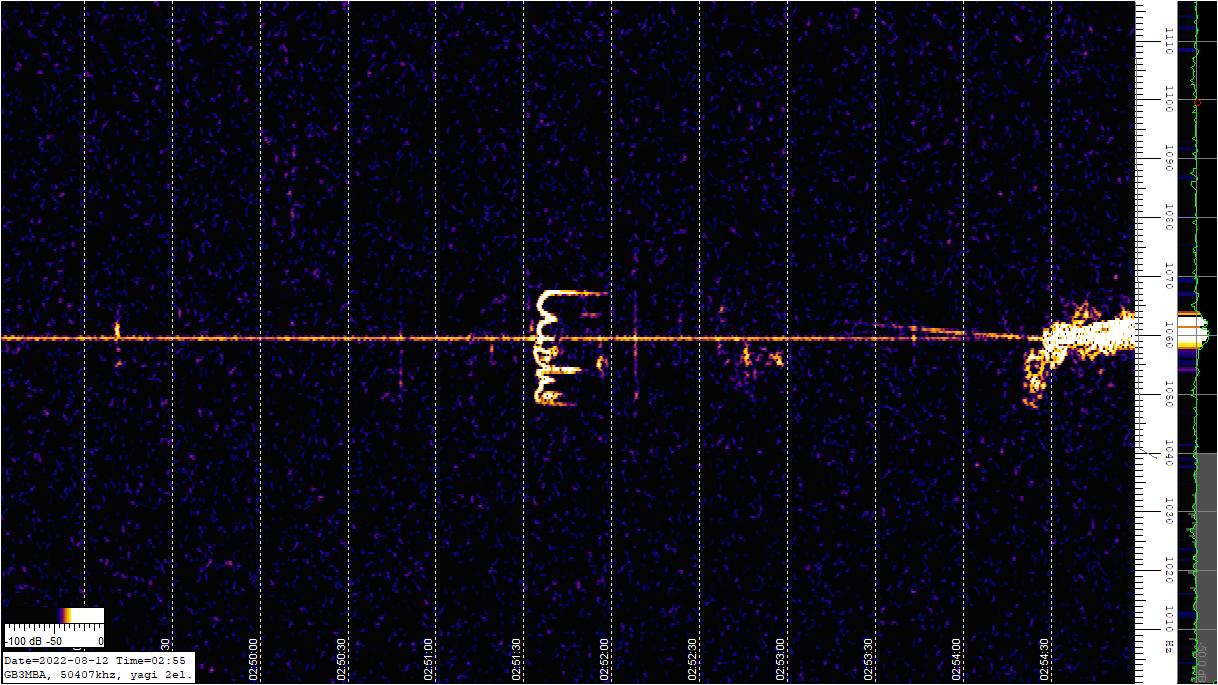

Captures from GB3MBA
Captures from GB3MBA
- Attachments
-
- GB3MBA_2208120525.jpg (134.44 KiB) Viewed 14341 times
-
- GB3MBA_2208120254.jpg (139.33 KiB) Viewed 14341 times
-
- GB3MBA_2208120239.jpg (142.11 KiB) Viewed 14341 times
Last edited by Kees on Fri Aug 12, 2022 3:33 pm, edited 1 time in total.
-
johnberman
- Site Admin
- Posts: 20
- Joined: Mon Apr 25, 2022 9:53 am
Re: Captures from GB3MBA
Hi Kees
Looks good, I would be very interested in your Spectrum Lab Settings
Any chance of a few screen shots
Also have a look at this thread which looks at filtering - viewtopic.php?t=9
Kind regards
John B
Looks good, I would be very interested in your Spectrum Lab Settings
Any chance of a few screen shots
Also have a look at this thread which looks at filtering - viewtopic.php?t=9
Kind regards
John B
Re: Captures from GB3MBA
can any body confirm a ping ( my very first ) just to make sure i've got my settings correct?
![Image]()
2022-09-16 120607 (unable to post an image )
